Overview

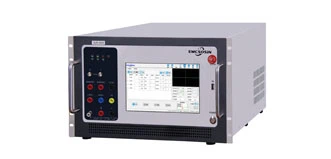

Impulse current generator SUR 10kA, SUR 20kA are mainly used for the surge impact test of arrester resistors, Varistor, SPD, TVS and other surge protection devices. Current pulse 8/20μs is applied to test such components. The technical specifications of the waveform conform to the requirements of national and IEC standard.
Features
- User friendly 7" touch panel display
- Support multi-language & facilitate users
- Built-in environment self-test program
- RS232/USB interface, PC control operation & printable test report
Technical data
|
Model |
SUR 10kA |
SUR 20kA |
|
Surge waveform |
Short-circuit current wave: 8/20μs |
|
|
Max output current |
10kA |
20kA |
|
Surge polarity |
Positive/negative/alternating |
|
|
Output impedance |
0.5Ω, 0.75Ω |
|
|
Surge trigger mode |
automatic/ manual |
|
|
Test count |
1~9999 |
|
|
Interval |
10~9999S |
|
|
Power supply |
AC220V 50/60Hz |
|
|
Ambient temperature |
15℃~35℃ |
|
