Overview

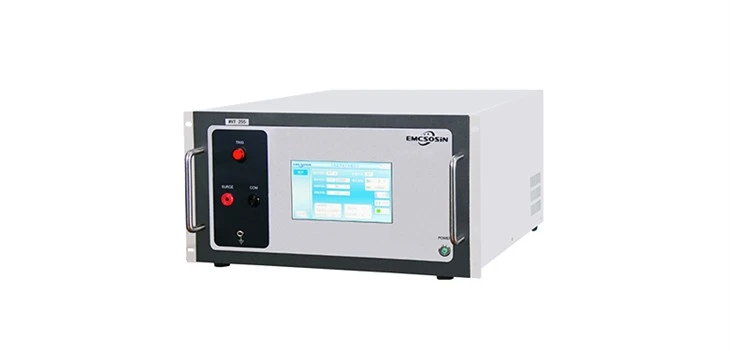

Impulse voltage generator WVT 60065 is designed in accordance with the requirements of the surge test in the standard IEC 60065 and GB 8898: "Audio, video and similar electronic apparatus - Safety requirements".
Features
- User friendly 7" touch panel display
- Support multi-language & facilitate users
- Built-in environment self-test program
- RS232/USB interface, PC control operation & printable test report
Impulse Voltage Generator WVT 60065 Technical data
|
Model |
WVT 60065 |
|
Output voltage |
0.2~10kV |
| Rise time | <50μs |
| Time to half value | 3.0ms |
|
Polarity |
Positive/negative/alternating |
|
Surge output mode |
Automatic |
|
Number of impulses |
1~9999 |
|
Interval |
3~9999s |
|
Power supply |
AC 220V, 50/60Hz |
|
Ambient temperature |
15℃~35℃ |
