Overview

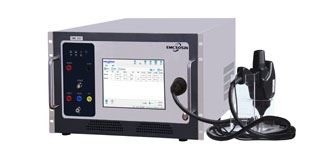

Multi-function immunity tester is able to carry out ESD (electrostatic discharge), EFT (electrical fast transient)/ burst and surge immunity test. It is multifunctional combination immunity test equipment for the three tests which can be freely combined.
● EMC S03-W contains three tests for ESD, EFT/burst and surge immunity test.
● EMC S02-W contains EFT/burst and surge immunity test.
● EMC S02-E contains ESD and surge immunity test.
● EMC S02-F contains ESD and EFT/burst immunity test.
All models are with built-in fully automatic coupling/decoupling network, full touch screen interface, with the same level performance of international brands.
Compliant Standards
● IEC/EN 61000-4-2 GB/T17626.2
● IEC/EN 61000-4-4 GB/T17626.4
● IEC/EN 61000-4-5 GB/T17626.5
Features
● User friendly 7" touch panel display
● Support multi-language & facilitate user
● Three-in-one tests function, meeting various testing requirements
● Built-in voltage monitoring probe, real-time display of peak voltage
● Voltage gradually increasing function, which is convenient for user to find the critical point of product anti-static during the development stage
● With various functions such as control, protection, warning, and indication, which can effectively protect the safety of user and system
● Supports single, continuous, intelligent, gun control, and 20PPS scanning discharge modes
● Replaceable standard RC modules to meet the testing requirements of different standards
● Built-in fully automatic coupling/coupling network
● Built-in environment automatic detection program, automatically detects the testing environment and reminds the user
● Pre-programmed international standard level parameters, easy and fast operation
● Self-calibration function to ensure normal operation of the equipment
● RS232/RJ45 Port, PC control operation & printable test report
Technical Data
|
ESD TEST - Electrostatic Discharge Immunity Test |
|
|
Output voltage |
0.2~±20kV |
|
Polarity |
Positive/negative/alternating |
|
Energy storage capacity |
150pF |
|
Discharge resistor |
330Ω |
|
Discharge current rise time |
0.6~1ns |
|
Hold-on time (air discharge) |
≥5s |
|
Discharge mode |
Contact discharge, air discharge |
|
Discharge type |
Single discharge, repetitive discharges |
|
Discharge trigger |
Manual/auto/20pps/single/gun control |
|
Working mode |
IEC level mode, program mode, voltage rising mode |
|
Discharge interval |
0.05~9.99s |
|
Number of discharges |
1~9999 |
|
EFT TEST - Electrical Fast Transient (EFT)/ Burst Immunity Test |
|
|
Output voltage |
0.2~±5kV |
|
Frequency |
1Hz~1000kHz ±10%, continuously adjustable |
|
Polarity |
Positive/negative/alternating |
|
Pulse running time |
1~9999s, continuously adjustable |
|
Internal resistance |
50Ω ±10% |
|
Pulse rise time |
5ns ±30% |
|
Pulse width |
50ns ±30% (50Ω load), 35ns~150ns (1kΩ load) |
|
Number of pulses |
1~255, continuously adjustable |
|
Burst period |
0.15~99.99s, continuously adjustable |
|
Phase |
0~359°synchronous, asynchronous, automatic |
|
Coupling/decoupling network |
Built-in, single-phase, three-wire, AC 220V/16A, DC 60V/16A (custom specific on demand) |
|
SUR TEST – Surge Test |
|
|
Surge waveform |
Open-circuit voltage wave: 1.2/50μs Short-circuit current wave: 8/20μs |
|
Open-circuit voltage |
0.2~6kV |
|
Short-circuit current |
0.1~3kA |
|
Polarity |
Positive/negative/alternating |
|
Phase |
0~359°synchronous, asynchronous, automatic |
|
Effective output impedance |
2Ω (common mode 12Ω) |
|
Coupling/decoupling network |
Built-in, single-phase, three-wire, AC 220V/16A, DC 60V/16A (custom specific on demand) |
|
Coupling mode |
Differential mode 18μF, common mode 9μF/10Ω |
|
Number of surges |
1~9999 |
|
Interval |
10~9999S |
